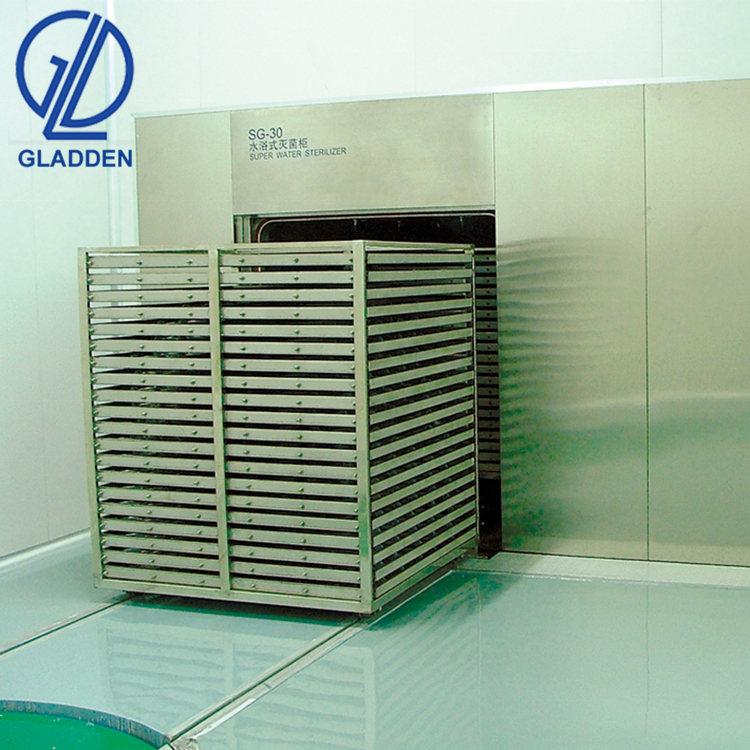

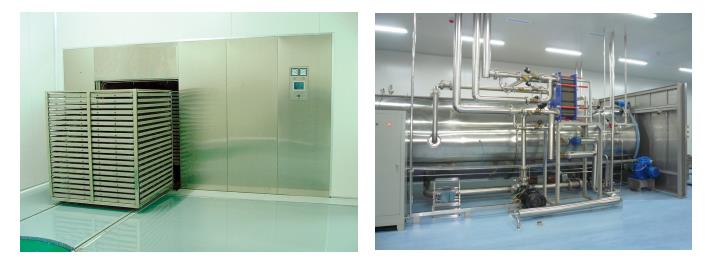

Autoclave

General introduction

This SG series adopts cyclical water as sterilization heating carrier and carry out water-pouring sterilizing operation for articles.

Filling with circulation water (Pure water) to a preset level. Heating up with circulation water. During heating up a preset differential ballast pressure above the relevant saturated steam pressure is maintained in the chamber by compressed air that prevents damage of the product containers. Sterilization for a preset time under a preset differential ballast pressure with a guaranteed temperature distribution inside the product of ±1℃.Cooling with primary circulation water, which is pumped through the cooling water cooled external heat exchanger and sprayed over the load. During the cooling process a preset differential ballast pressure above the relevant saturated steam pressure or a fixed ballast pressure is maintained in the chamber.

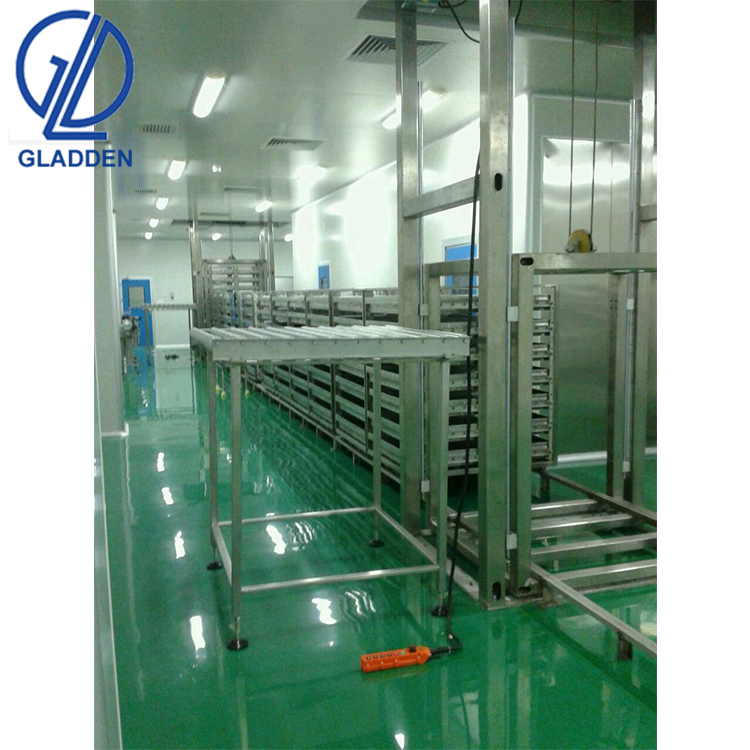

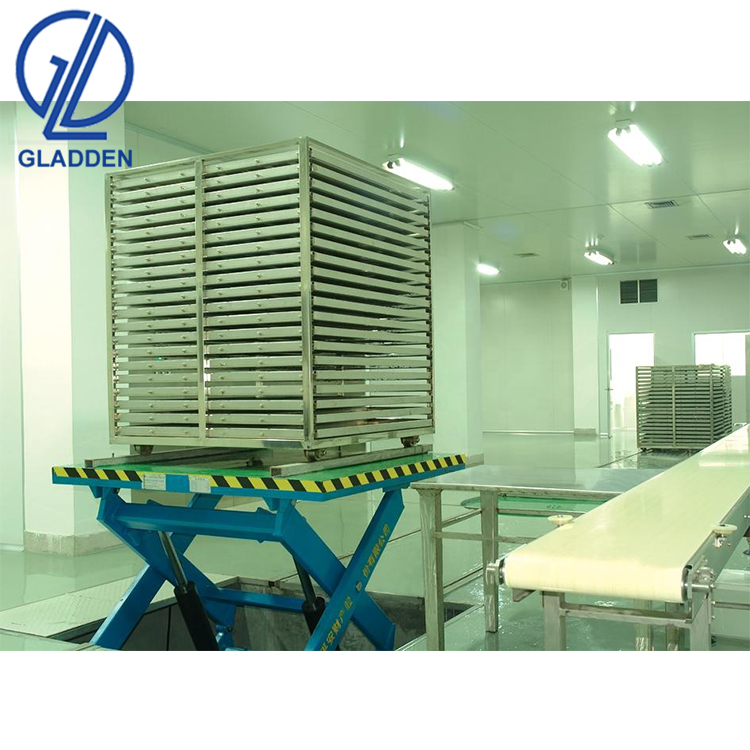

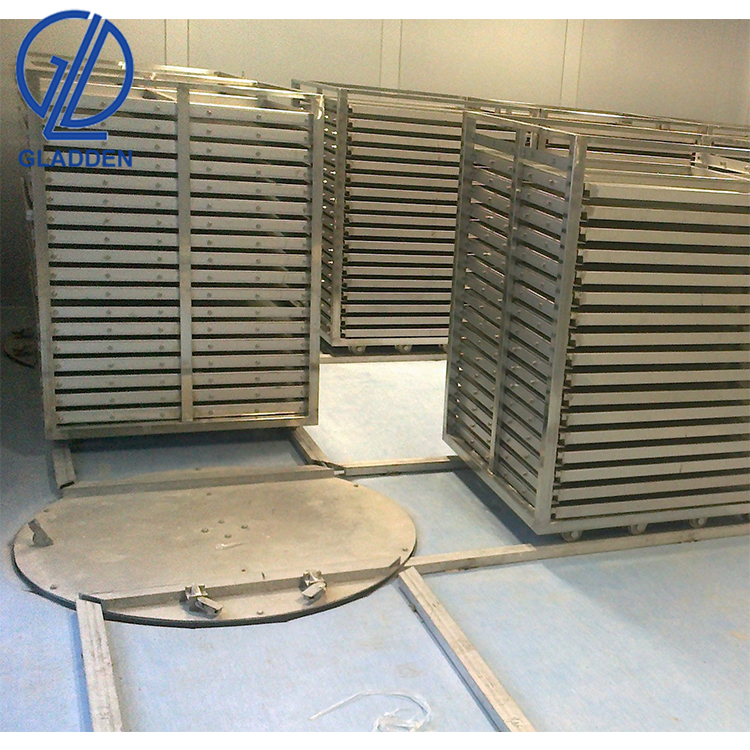

Trolley and semi-automatic loading orbit and turntable for Autoclave
